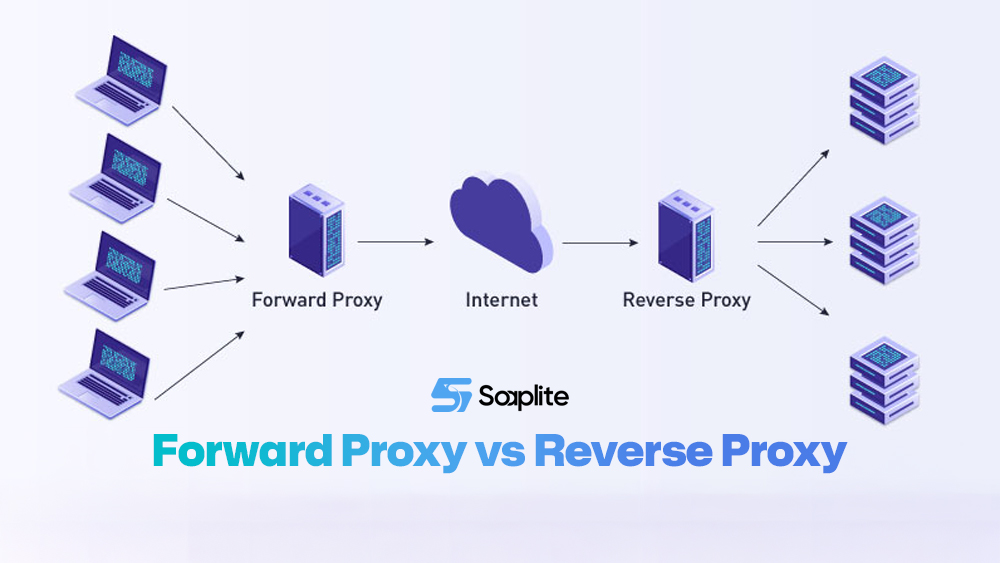

Forward Proxy vs Reverse Proxy: Differences & Use Cases

Forward Proxy vs Reverse Proxy may look alike at first, but each one solves a completely different problem in your network. If you’re a developer, network engineer, or someone managing systems, knowing how these proxies handle traffic and protect your setup is extremely important.

Both types also influence security, access control, and the overall ability of your system to scale. This article will break down their main functions, explain how traffic flows through each one, and show you the best situations to use them. Once you understand IP masking, authentication, caching, load balancing, and TLS termination, you’ll be able to choose the right approach and apply it effectively to your work.

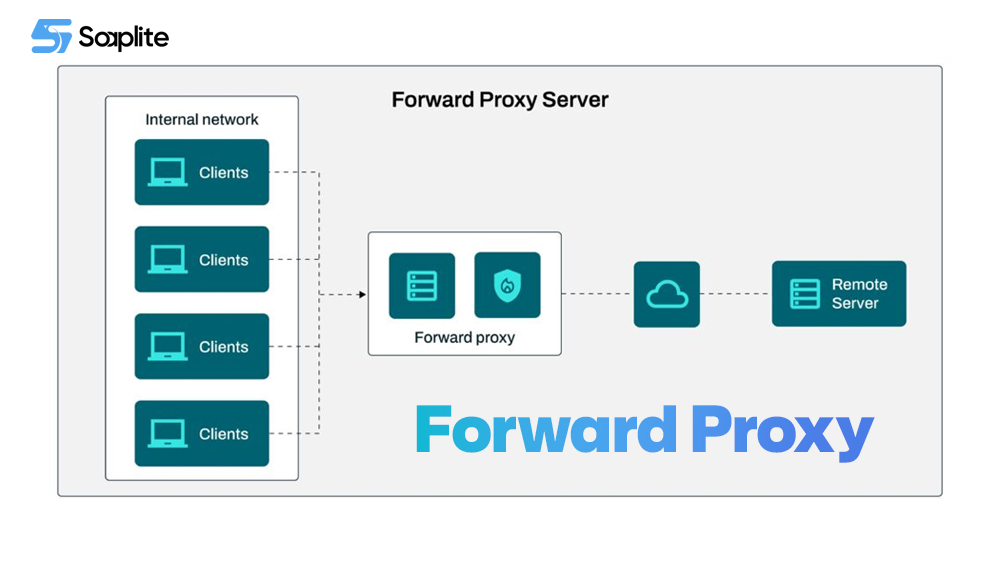

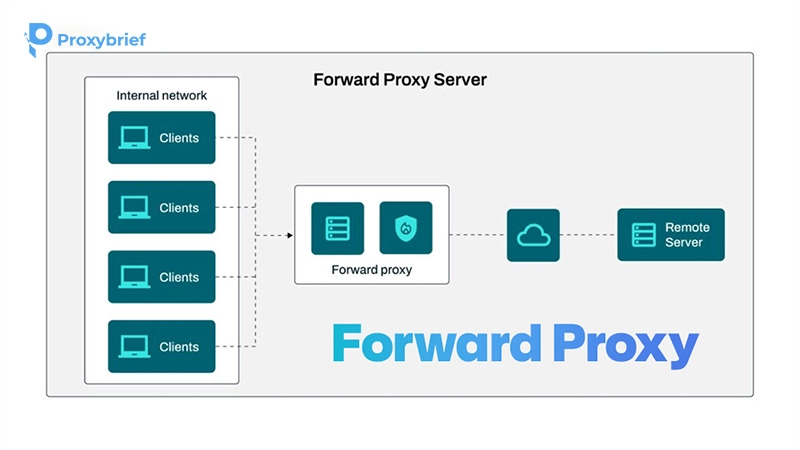

What Is a Forward Proxy?

A forward proxy is an intermediary server that sits in front of client devices and sends their requests to the internet on their behalf. Instead of a user or application connecting directly to a website, the request goes through the forward proxy first. To the destination site, the forward proxy appears as the “client,” so it only sees the proxy’s IP address, not the real one.

This setup is commonly used for anonymity, content filtering, enforcing outbound network policies, and controlling how internal users access external resources. A forward proxy can also improve performance through caching while giving organizations greater visibility and control over outgoing traffic.

How Does a Forward Proxy Work?

When a client sends a request (like opening a website), it goes to the forward proxy first. The proxy receives this request and applies its configured rules before allowing it to continue.

Traffic Flow: The client is set up so that all outbound internet requests go through the proxy’s address.

Authentication & Routing: The proxy may check whether the client is allowed to access the internet, then forwards the request to the external server.

IP Modification: The proxy replaces the client’s real IP with its own, so the external server only sees the proxy’s IP address.

Response Relay: The external server sends the response back to the proxy, and the proxy passes it on to the client.

Through this flow, the proxy can control access, track activity, and speed up repeated requests using its cache.

Pros and Cons of Forward Proxy

A forward proxy server comes with clear benefits and drawbacks, and acts as a central decision point for privacy, filtering, and performance. This level of control brings valuable advantages but also introduces certain limitations you need to consider.

In many deployments, administrators must also decide between private proxy vs shared proxy models, since shared IP pools reduce cost while private allocations improve stability and reduce the risk of IP reputation issues.

Pros of Forward Proxy

A forward proxy offers several important advantages that enhance privacy, strengthen control over outbound traffic, and improve overall browsing performance. Below are the key benefits:

• Enhanced Client Privacy: The forward proxy hides the client’s real IP address from external websites, giving users more anonymity and preventing direct tracking of their identity or location. For environments that demand consistent performance and full IP ownership, some teams deploy a dedicated proxy server instead of a shared pool to maintain predictable routing behavior.
• Access Control and Filtering: Organizations can manage how users browse the internet by blocking certain sites, filtering content, or limiting access based on permissions. This helps maintain compliance and keep work environments productive.
• Improved Performance via Caching: The proxy can save copies of frequently accessed content. When another client requests the same resource, the proxy delivers it from its cache, making access faster and reducing external bandwidth.

Cons of Forward Proxy

A forward proxy also comes with limitations that can impact speed and administrative workload. Below are the key drawbacks you should consider when deploying a forward proxy.

• Single Point of Failure: If the forward proxy goes down, every user depending on it loses internet access. This central reliance can lead to widespread disruption.
• Increased Latency: Because all traffic passes through an extra hop (the proxy), users may experience delays, especially if the proxy is overloaded or not optimized.
• Complex Management: Handling authentication, access rules, and filtering policies can be challenging and time-consuming, particularly in large networks with constantly changing needs.

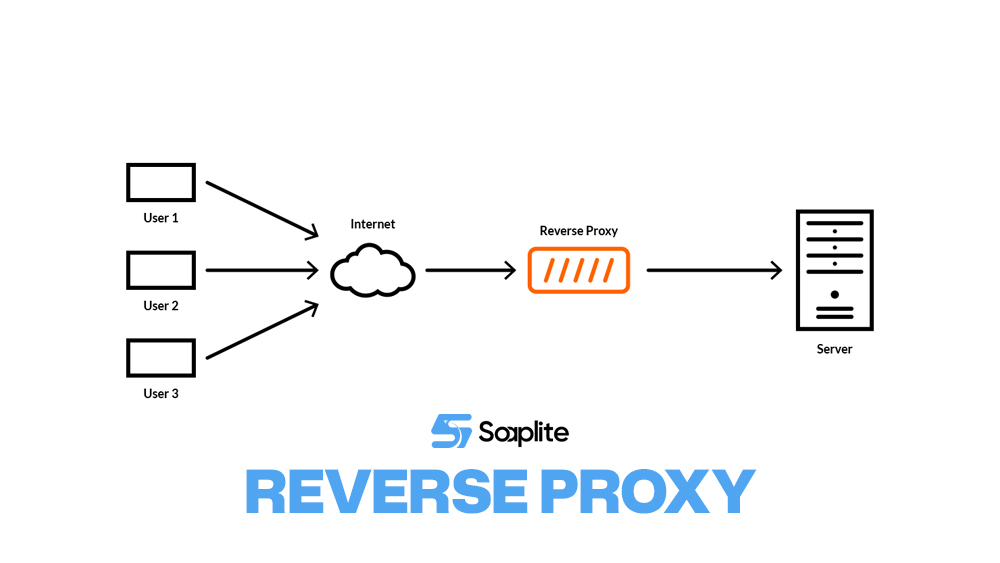

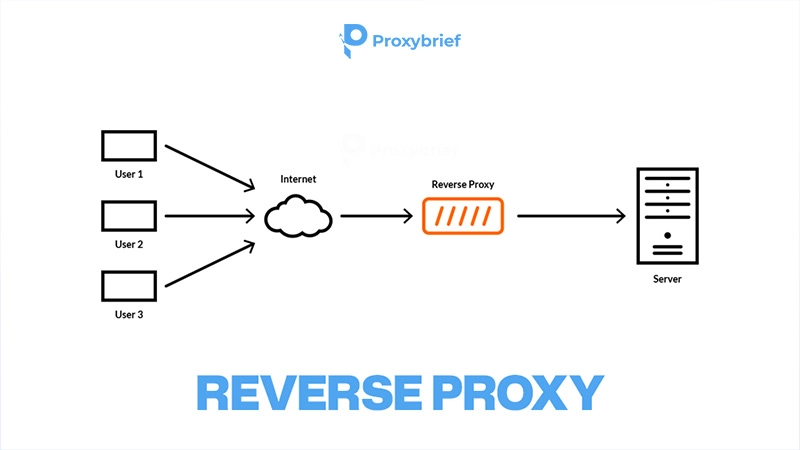

What Is a Reverse Proxy?

A reverse proxy is a server that sits in front of your backend applications and receives all client requests before they reach the origin servers. To the user, the reverse proxy appears as the main server, handling the public hostname, managing TLS certificates, and deciding which internal service should process each request.

Forwarding traffic to the right backend helps with load distribution, improves security by hiding server IPs, filters malicious requests, and boosts performance through caching and optimization. Unlike a forward proxy that protects clients, a reverse proxy shields your servers and keeps your infrastructure safer and more efficient.

How Does a Reverse Proxy Work?

The operation of a reverse proxy focuses on handling incoming traffic before it reaches the internal server infrastructure.

Traffic Management: The public DNS record directs clients to the reverse proxy’s IP address, so every request for the web application goes to the proxy first.

Routing and Load Distribution: The proxy examines the request (such as the URL or headers) and uses load balancing methods to choose the best backend server to handle it.

Security and Performance: The reverse proxy can manage SSL/TLS termination, cache static content, and block harmful requests, acting like a Web Application Firewall (WAF).

Server Identity Hiding: The backend server returns the response to the proxy, and the proxy forwards it to the client. The client never sees the backend server’s IP address or internal setup.

Pros and Cons of Reverse Proxy

Reverse proxies offer major advantages, especially when it comes to protecting servers and improving performance, because they sit at the frontline of incoming traffic, control how requests are routed, and optimize how backend resources are used.

Pros of Reverse Proxy

A reverse proxy delivers many advantages that strengthen security, improve performance, and support scalable applications. Below are the most important benefits it brings to modern backend systems.

• Load Balancing for Scalability: By spreading incoming requests across multiple backend servers, a reverse proxy prevents any single machine from being overloaded. This greatly improves application scalability and ensures more stable uptime.
• Enhanced Backend Security: It works as a security shield, hiding internal architecture and server IP addresses from the internet. It can filter harmful traffic and guard against attacks like Distributed Denial of Service (DDoS).
• Performance Optimization: With features such as caching static content and handling SSL/TLS termination, the reverse proxy takes heavy tasks off backend servers. This helps boost server efficiency and improves website response times.

Cons of Reverse Proxy

While reverse proxies bring many advantages, they also introduce certain limitations that can affect reliability, complexity, and system performance. Below are the key drawbacks to consider.

• Single Point of Failure: Like a forward proxy, if the reverse proxy goes down, all client access to the backend servers is blocked. The entire application becomes dependent on its availability.
• Configuration Complexity: Creating accurate load balancing rules, setting WAF protections, and routing traffic in microservices environments can be complex and require advanced expertise to maintain.
• Increased Overhead: Adding a proxy layer introduces another hop and extra processing for routing, security checks, and caching. While the benefits are strong, it still adds some operational overhead compared to a direct connection.

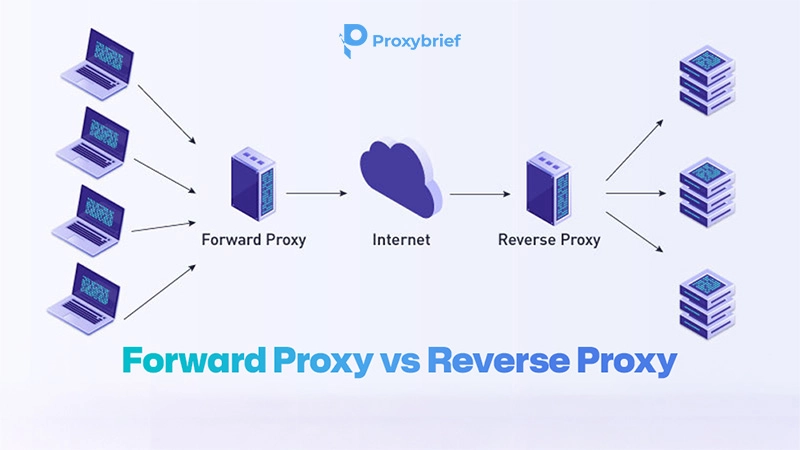

Forward Proxy vs Reverse Proxy: Side-By-Side Comparison

When building a network, you need to understand how the two proxy types differ and why their roles matter. Forward proxy vs reverse proxy highlights a fundamental contrast: one is designed to protect the user and control outbound traffic, while the other is built to protect the server and manage inbound requests. By understanding this difference, you can select the right setup, apply the proper security measures, and design an infrastructure that is both safer and more efficient for your needs.

Comparison Table

The following table offers a quick, side-by-side comparison of the core attributes and functions of the forward proxy server and the reverse proxy.

This comparison highlights the inverse nature of their operational roles: the forward proxy serves the client side by managing outbound requests, while the reverse proxy serves the server side by handling and protecting incoming traffic.

Key Differences Explained in Depth

The core distinction between the two types of proxies lies in the direction of the traffic they handle and the party they represent.

• Network Direction: A forward proxy handles outbound traffic, helping clients reach external websites or online services. A reverse proxy does the opposite; it handles inbound traffic by receiving requests from users and sending them to the right internal server.
• Security Role: The forward proxy’s security role is to protect the client and apply network policies, such as blocking dangerous websites or stopping unwanted access. The reverse proxy’s security role is to protect the server infrastructure, using tools like WAF and DDoS protection to stop attacks before they reach internal systems.
• IP Masking Purpose: Both proxies hide IP addresses, but for different reasons. A forward proxy masks the client’s IP to increase privacy and prevent tracking. A reverse proxy masks the server’s IP to hide internal network details and reduce the risk of direct attacks. In modern infrastructures, administrators may also consider deploying an ipv6 proxy to expand available address space and reduce IPv4 exhaustion limitations in large-scale environments.
• Scalability: Reverse proxies help applications scale by distributing requests across multiple backend servers. This improves performance under heavy load. Forward proxies generally do not provide this kind of server-side scalability.
• Deployment Contexts: Forward proxies are often used in offices, schools, or homes to control and manage how clients access the internet. Reverse proxies are deployed in data centres, cloud platforms, and in front of web applications to secure, route, and optimize incoming traffic.

Choosing Between Forward and Reverse Proxies: Decision Framework

Selecting between a forward proxy and a reverse proxy depends entirely on your specific network goals. You need a structured evaluation model that considers whether your priority is controlling your users’ access to external resources (outbound) or protecting your application’s availability and security from incoming traffic (inbound).

When to Use a Forward Proxy?

We should consider a forward proxy when we want to control and monitor outbound traffic from users, internal services, or scraping tools. This type of proxy is especially helpful for organizations that need oversight, policy enforcement, or stronger privacy. Common scenarios include:

Anonymity and IP rotation: When you do web scraping, security testing, or online research, a forward proxy server masks real client IPs and routes traffic through approved locations or IP pools. In large-scale automation tasks, teams often look for an unlimited bandwidth proxy configuration to avoid traffic caps that could interrupt high-volume data collection workflows.

Content filtering and compliance: Enterprises can meet HR, legal, and regulatory rules by blocking certain domains or categories and even restricting access to specific countries. A forward proxy helps apply these rules consistently for all employees.

Parental control and education networks: Schools, homes, and public libraries can use forward and reverse proxy combinations to block harmful or age-restricted content while still allowing safe and productive browsing for students and users.

Data loss prevention (DLP): By inspecting outbound HTTP/HTTPS traffic, a forward proxy can detect and stop attempts to upload sensitive data to unapproved or risky sites, helping protect confidential information.

Cost and bandwidth optimization: Caching frequently accessed external resources reduces repeated downloads. This is especially valuable in locations with limited bandwidth or high internet costs, keeping the network faster and more efficient.

When to Use a Reverse Proxy?

We turn to a reverse proxy when we need to scale and protect applications that users access from the internet or partner networks. You’ll typically use a reverse proxy when:

You need load balancing across multiple instances: A reverse proxy spreads incoming requests across app servers, containers, or Kubernetes pods. This prevents any single server from getting overloaded, supports horizontal scalability, and allows smoother rolling deployments.

You want a unified public endpoint: Multiple microservices or applications can run behind a single hostname. The reverse proxy uses routing rules to decide which backend service should handle each path or type of request, making the system easier to manage.

You care about performance at the edge: A reverse proxy can cache content, apply gzip or Brotli compression, support HTTP/2 or HTTP/3, and reuse connections. These features help deliver faster responses and lower latency to users in different regions.

You need integrated WAF and security controls: Reverse proxies often include or connect with WAF engines, bot-detection tools, and rate-limiting features. These security layers are important components of Zero Trust models and modern API protection strategies.

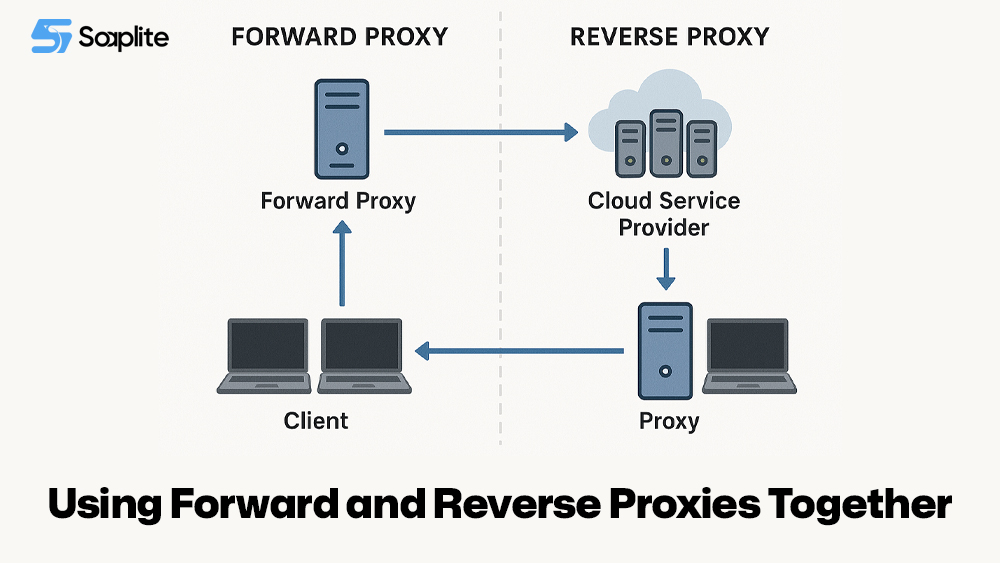

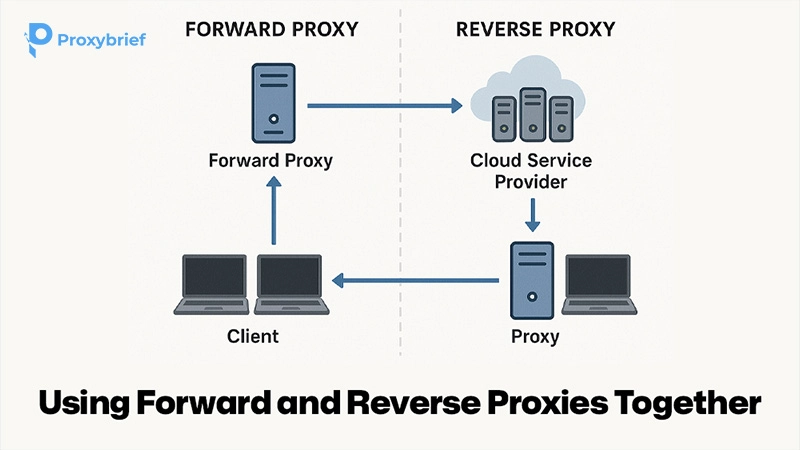

Is It Possible To Use Forward Proxies and Reverse Proxies Together?

Yes, it is possible, and very common, for both a forward and reverse proxy to coexist within a modern enterprise infrastructure. Each one serves a different purpose, operates at a different point in the network path, and together they create a more controlled and secure environment.

The Hybrid Ecosystem: Imagine a user inside a corporate office protected by a forward proxy trying to access a company application hosted in the cloud, which is protected by a reverse proxy.

• The user’s request is first inspected and approved by the corporate forward proxy.
• The request then travels across the internet.
• It reaches the public-facing corporate reverse proxy.
• The reverse proxy receives the request and routes it to the correct backend application server.

In real-world deployments, many teams turn to practical resources such as Soaplite to better understand how to structure this layered proxy architecture without overcomplicating the setup.

Example of Enterprise Security Stack: In this setup, the forward proxy ensures employees follow company policies when accessing external sites, controlling and monitoring outbound activity. Meanwhile, the reverse proxy ensures that external customers or clients can securely access the company’s public-facing applications with proper filtering, routing, and protection. This dual-layer design greatly strengthens overall network security, improves performance, and provides consistent control over both inbound and outbound traffic.

Technical Setup and Configuration for Forward Proxy and Reverse Proxy

Setting up a proxy is an essential skill for any IT or DevOps professional. To make the process easier to understand, we’ll walk through basic configurations using two popular open-source tools: Squid for a forward proxy and Nginx for a reverse proxy.

Setting up a Forward Proxy (Squid Example)

Squid is a robust and widely used caching forward proxy. Its main configuration file is usually located at /etc/squid/squid.conf.

Define Access Control Lists (ACLs): Start by specifying which clients are allowed to use the proxy.

Allow HTTP Access: Grant access to the approved ACLs and block everyone else.

# Example Squid Configuration Snippet

# Define a local network ACL (assuming 192.168.1.0/24 is your internal net)

acl localnet src 192.168.1.0/24

# Allow access only for users on the local network

http_access allow localnet

# Deny all other access

http_access deny all

# Specify the port on which the proxy listens

http_port 3128

After this setup, clients inside localnet must configure their browser or system network settings to use the proxy at [Proxy_IP_Address]:3128.

Setting up a Reverse Proxy (Nginx Example)

Nginx is highly favoured for its strong performance as a reverse proxy. In the example below, Nginx accepts incoming traffic on port 80 and forwards it to a backend web server running on port 8080.

Server Block Definition: Create a server block that listens for public traffic and responds to your domain name.

Proxy Pass Directive: Use proxy_pass to forward each incoming request to the correct internal backend server.

# Example Nginx Reverse Proxy Configuration

server {

    listen 80;

    server_name example.com; # Your public domain name

    location / {

        # The key directive: traffic is forwarded to the backend server

        proxy_pass http://localhost:8080;

        # Forward the original client IP and host information to the backend

        proxy_set_header Host $host;

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

    }

    # SSL/TLS Consideration: For HTTPS, you would use a 'listen 443 ssl' block,

    # where SSL termination takes place using your SSL certificate.

}

SSL/TLS Considerations: For both types of proxies, especially the reverse proxy, proper HTTPS setup is essential. A reverse proxy normally handles SSL/TLS termination by decrypting incoming HTTPS traffic, inspecting it, and then re-encrypting it before sending it to the backend server.

A forward proxy also requires special setup to inspect HTTPS traffic, which usually involves installing trusted corporate certificates on client devices so encrypted connections can be safely inspected without breaking security.

Conclusion

Understanding the difference between Forward Proxy vs Reverse Proxy is key to building secure and reliable systems. A forward proxy protects the client by giving anonymity and controlling outbound traffic. A reverse proxy protects the server by providing security, load balancing, and better performance for inbound requests.

Both tools solve different problems, and using them correctly can make your network safer and faster. By applying the guidance in this article, you can choose the setup that best fits your needs and build a stronger, more scalable infrastructure.
