How Proxy Servers Work: 2026 Guide to Types & Setup

Understanding how a Proxy Server works is one of the simplest ways to protect your privacy and improve how you browse or manage networks. Every time you open a website or use a working proxy, your traffic is quietly routed through an extra layer that can hide your IP, control access, and filter threats.

That’s why we break down the full process in clear, practical terms so you know exactly what happens behind the scenes. You could learn how different proxy types operate, why organizations and individuals rely on them, and what risks to watch out for. Whether you want better security, smoother performance, or smarter control, this article will help you understand and use proxies with confidence.

What Is a Proxy Server?

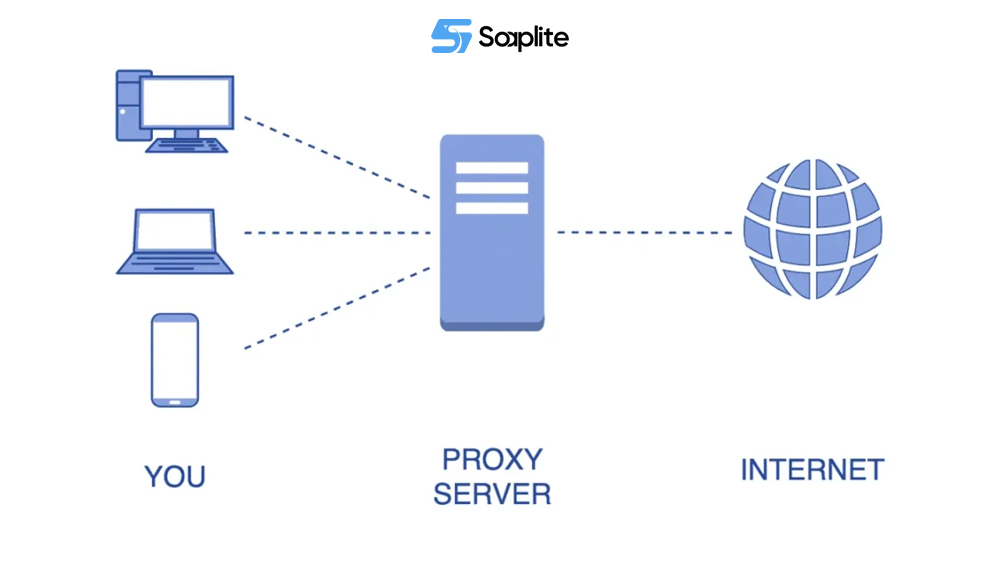

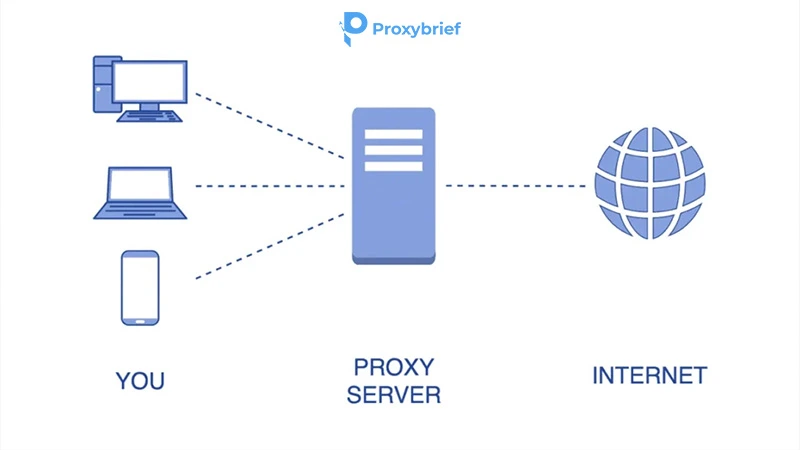

A proxy server is a middle layer between your device and the internet. Instead of connecting to a website directly, your request goes to the proxy first, and the proxy sends it to the website on your behalf. When the site replies, the response returns to the proxy server and then back to you.

Technically, a proxy is an intermediary server that performs IP substitution and traffic forwarding. It replaces your real IP address with its own, applies rules or filters, and then forwards the request. This works similarly to NAT (Network Address Translation), allowing many devices to share one public IP.

Because a proxy operates around OSI Layer 4 and Layer 7, it can inspect, modify, or control HTTP, HTTPS, or SOCKS traffic, letting you block sites, cache content, enhance privacy, or bypass restrictions like geo-blocking.

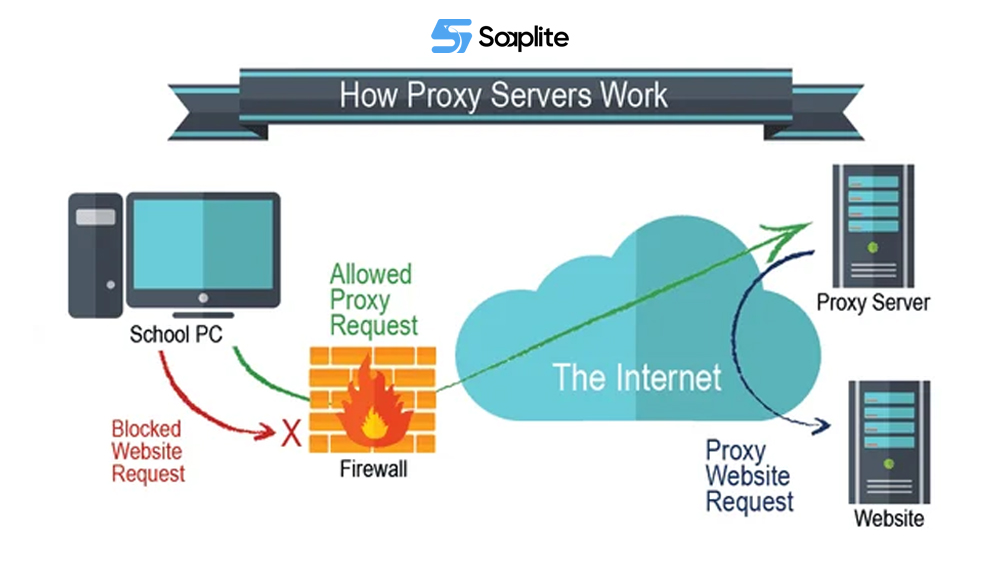

How Does a Proxy Server Work (Step-by-Step Lifecycle)

To truly understand how proxies work, it helps to break down what actually happens behind the scenes. So let’s follow one complete request as it leaves your computer, passes through the proxy server, reaches the website, and finally returns to your screen.

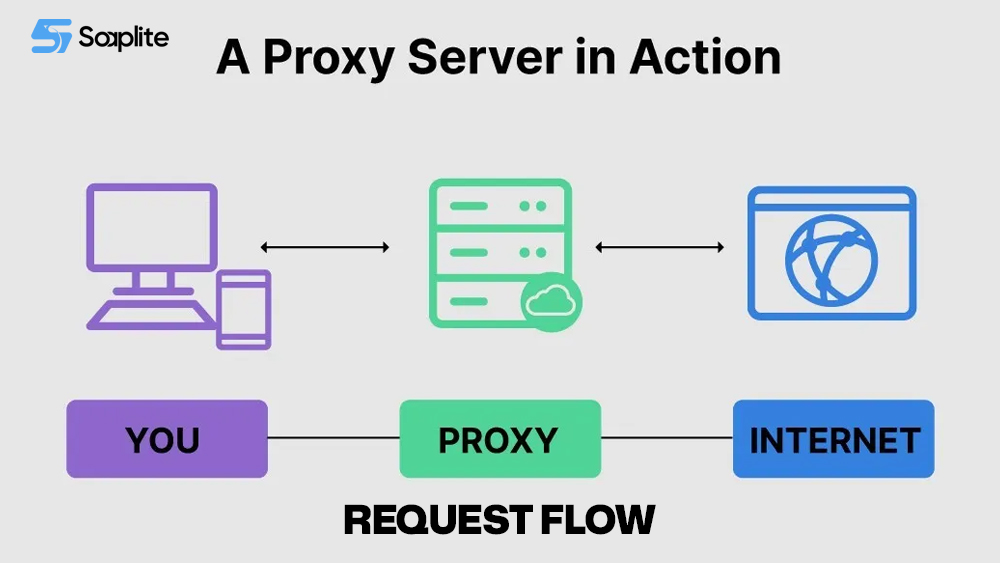

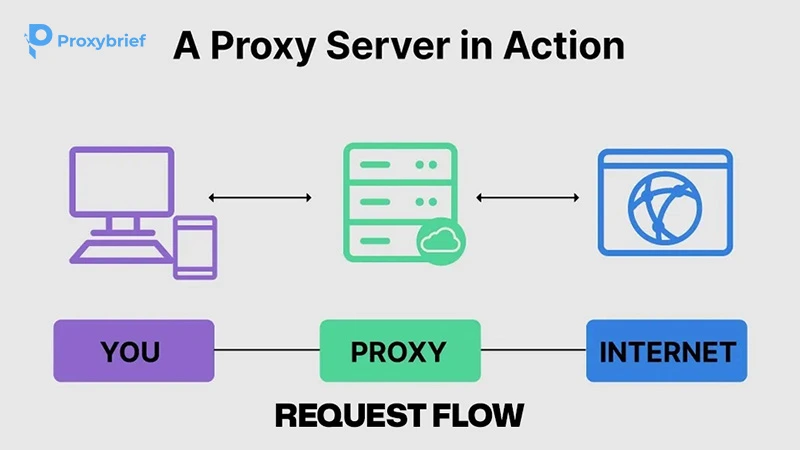

The Complete Request Flow

The life cycle of a request moving through a working proxy happens almost instantly, yet behind the scenes, it follows a structured and orderly process from start to finish.

You start the Request: You type a web address into your browser. Your computer sends this request to the pre-set proxy server.
Proxy Gets the Request: The proxy server receives your data. It knows your real IP address at this point.
Proxy Makes Changes: The proxy checks its rules (e.g., Is this site blocked? Is the user allowed?). Most importantly, it replaces your real IP address with the proxy’s own IP address.
Proxy Sends the Request: The proxy sends the changed request to the final website. The website thinks the proxy is the original sender.
Website Replies to Proxy: The website sends the data (the web page) back to the proxy’s IP address.
Proxy Sends Data Back to You: The proxy passes the website data back to your computer.

The great thing about this is that the website never sees your real location. But remember, while the proxy hides your IP address, it usually does not hide other details like what kind of computer or browser you are using.

What Happens Inside a Proxy Server?

A proxy server does far more than pass messages back and forth; it intelligently analyzes, filters, and directs the traffic moving through it.

Inside the proxy, several actions take place. It updates the request details by rewriting headers to hide your identity. It applies filtering rules to block bad sites or unwanted content. Many proxies use caching, which means they save copies of popular websites.

If someone else asks for the same site, the proxy sends the saved copy instantly, making things faster. It also manages many users at once by grouping connections and, if necessary, uses load balancing to send traffic to the best server.

How IP Replacement and NAT Work?

To understand how a proxy server works with IP masking, we need to revisit NAT. The core trick a proxy server uses to hide your location is called Network Address Translation (NAT).

Network Address Translation (NAT) rewrites IP headers so that traffic from many private devices can share a small group of public IP addresses. When a device makes an outbound connection, the router or proxy replaces the internal IP with its own public IP. It also keeps a mapping table so it always knows which internal device should receive the response. In a proxy setup:

Outbound mapping: Your internal IP and port are mapped to the proxy’s IP and an external port. The website only sees the proxy’s IP address, not yours.
Inbound mapping: When the website sends data back, the proxy looks at its mapping table to forward the response to the correct internal device or user session.

This model allows many users behind the proxy to appear as a single public IP to the outside world. It improves privacy and conserves IP address space, but it also means tracking or blocking usually happens at the proxy level rather than the level of individual devices. From a privacy and tracking standpoint:

Websites cannot see your real IP when the proxy is correctly configured.
They can still identify you using cookies, browser fingerprints, or logged-in accounts.
For stronger privacy, you often need to combine proxies with good browser settings and safe browsing habits.

Different Types of Proxies and How They Work

Proxies are not all the same. They are sorted by what they do and who they serve. Knowing the type helps you choose the right one for your job. This table shows the main types of proxy servers and explains their basic function and best uses.

Proxy Type	How It Works	Best Use For
HTTP/HTTPS Proxy	Intercepts and forwards web traffic at the application layer (HTTP/HTTPS).	Browsing, content filtering, and simple access control.
SOCKS5 Proxy	Works at a lower level, forwarding any TCP traffic without understanding it.	Games, P2P, applications beyond HTTP, such as SMTP or FTP.
Residential Proxy	Uses IPs from real home internet connections assigned by ISPs.	Avoiding detection, market research, ad verification, localized scraping.
Datacenter Proxy	Uses IPs from data centers or clouds, not tied to physical households.	High-speed automation, bulk scraping, and tasks where bans are acceptable.
Mobile Proxy	Routes traffic through mobile carrier (4G/5G) networks.	Bypassing strict anti-bot systems, mobile app testing, and region-restricted use.
Transparent Proxy	Forwards traffic without hiding your IP, often invisible to the user.	School or company filtering, caching, and simple monitoring.
Anonymous/Elite	Hides your IP and minimizes identifying headers.	Privacy-focused browsing and situations where identity protection matters.

Each proxy type is designed to handle a different “how do proxies work” situation. Some focus on privacy, others on speed, stability, or the ability to bypass strict blocks. When you understand how these differences affect real-world performance, it becomes much easier to choose the right tool for your needs.

Instead of assuming all proxies behave the same, you can match the correct type to the specific task, whether that’s browsing safely, running automation, accessing region-locked content, or managing large volumes of data. This helps you avoid common mistakes and ensures you get the best results from your setup.

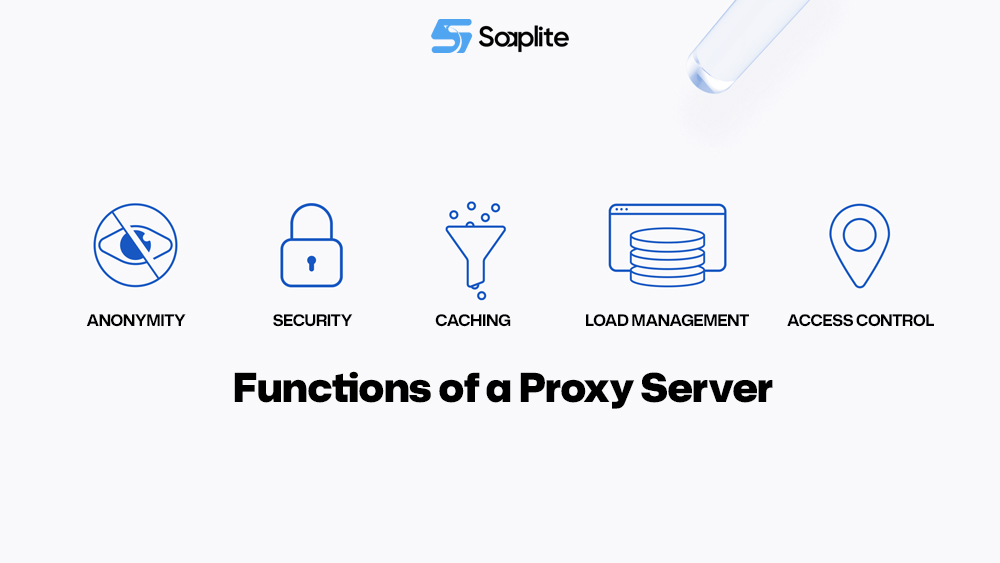

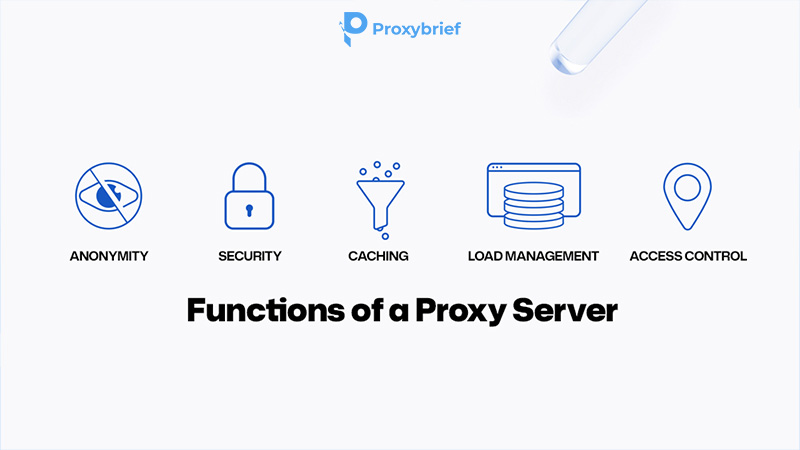

The Core Functions of a Proxy Server

Every proxy server has a set of important responsibilities that quietly make your online life easier, helping boost speed, strengthen security, and create a more reliable browsing experience.

Anonymity: The main goal. It replaces your IP address with the proxy’s IP, which is called IP masking. This helps protect your location and identity.
Security: Proxies can act as a simple wall, checking traffic for threats, blocking bad sites, and working with firewalls to keep malware out.
Caching: By saving copies of frequently visited websites, proxies can serve those pages faster to users, saving time and internet usage for the network.
Load Management: Reverse proxies are great at this. They share incoming website traffic across several servers to make sure no single server gets overwhelmed, keeping the site online and fast.
Access Control: Companies use proxies to stop users from visiting certain websites or types of content, helping to enforce work rules.

Advantages & Limitations of Using Proxies

Using a proxy brings real benefits, but it also adds new risks. In this section, we look at both sides so you can decide when a proxy is helpful and when it might create more problems than it solves. If you’re still comparing tools before committing, reviewing a detailed proxy vs vpn breakdown can help clarify when a proxy is enough and when full traffic encryption might be the better choice.

Advantages of Using Proxies

A well-set-up working proxy can deliver real improvements to both speed and security, giving you a smoother and more protected experience whenever you go online.

Better Privacy and IP Masking: It hides your location, which is important when you don’t want to be tracked.
Geo-Location Switching: You can “pretend” to be in a different country to access content that is normally blocked in your region.
Load Balancing and Scaling: Websites can handle a huge number of visitors without crashing by using reverse proxies to spread the load.
Automation and Data Gathering: They are essential for running large automatic tasks, letting you rotate IPs so you don’t get blocked.
Faster Performance: The caching feature helps pages load quickly for all users on that proxy.

Limitations of Using Proxies

When it comes to proxy risks, the biggest problems often happen because you picked a bad provider or your proxy setup wasn’t done correctly.

Data Logging and Tracking: The proxy owner can see everything you do. If they are dishonest, they can save and sell your browsing history and login details.
Weak Encryption: If a proxy is not set up correctly, even your secure (HTTPS) data might be readable by the proxy owner or people trying to listen in.
IP Bans from Other Users: If you use a shared proxy server, other users might have abused the IP. Websites will see the bad history and block you immediately.
Legal Issues: While the tool is legal, using it to commit fraud, break copyright rules, or perform illegal activities is still illegal.

How to Choose the Best Proxy Provider

When we evaluate providers, we’re really choosing who we trust to sit in the middle of our traffic, so the decision matters. Several important criteria can help you avoid bad providers and pick one that protects your privacy and keeps your connection stable.

Logging and privacy policy: Always check what the provider logs, how long they keep those logs, and whether they share data with third parties or law enforcement. This tells you how much of your activity might be exposed.
IP quality and reputation: Look for clean IP pools with low blacklist rates and clearly sourced IPs, especially when dealing with residential and mobile networks. High-quality IPs reduce blocks and improve reliability.
Rotation and control options: A good service gives you flexibility. You should be able to choose sticky sessions, timed rotation, or per-request rotation depending on your task.
Speed and uptime guarantees: Providers should publish realistic speed performance and uptime SLAs. This is especially important for business use, where downtime or slow connections can cause real problems.
Protocol and platform support: Check that the provider supports HTTP, HTTPS, and SOCKS5, and offers easy integration with browsers, operating systems, and APIs. Broad protocol support gives you more freedom in how you use the proxy.
Location diversity: More countries and cities mean more options for localization, regional testing, and accessing geo-restricted content. A wide GEO selection makes the service much more versatile.
Security practices: Look for strong encryption, proper abuse protection, and transparent handling of abuse complaints. These practices show that the provider takes security seriously.
Support and documentation: Detailed guides and responsive support make setup easier and become essential as your usage scales. Providers that clearly explain how to use a proxy server in practical scenarios tend to reduce configuration errors and shorten deployment time.

How to Set Up a Proxy Server

Setting up a proxy simply means telling your computer, browser, or program to send all its internet traffic through the proxy’s address instead of going directly to websites. In other words, you’re instructing your device to route requests to the proxy first, and then let the proxy forward everything to the internet on your behalf. This small change in the network configuration is commonly referred to as adjusting your proxy settings, whether at the browser level or system-wide.

Here is a quick guide on setting up your device:

Get Details: You need the proxy’s IP address and Port number (e.g., 123.45.67.89:8080). If it’s a paid service, you will also need a username and password.

Browser Setup (Easiest)

If you only want your web browser to use the proxy, this is the quickest way to get started. Both Chrome and Firefox allow simple manual configuration.

Open your browser Settings
Search for “Proxy”: Use the search bar in the settings menu and type Proxy settings to quickly find the network configuration section.
Choose Manual Configuration: Select Manual proxy configuration or Set up manually, depending on your browser.
Enter your proxy details: Fill in the IP address and Port number provided by your proxy service.
Save and test: Visit an IP-checking site to confirm that your browser is now routing traffic through the proxy.

OS-Level Setup

If you want your entire device (not just your browser) to use the proxy, you need to configure it at the operating system level. This ensures that every app, tool, and background process sends its traffic through the working proxy.

Windows (All Traffic Through Proxy)

Open Settings from the Start menu.
Select Network & Internet.
On the left sidebar, choose Proxy.
Under Manual proxy setup, toggle on Use a proxy server.
Enter the proxy IP address and Port number provided by your service.
If your provider requires authentication, enter your username and password when prompted.
Click Save, then test by visiting an IP-checking website to confirm the proxy is active.

This setup forces Windows apps, browsers, and services to route their traffic through the proxy.

macOS (System-Wide Proxy Configuration)

Open System Settings (formerly System Preferences).
Go to Network.
Select the active network connection (Wi-Fi or Ethernet).
Click Details or Advanced, then open the Proxies tab.
Check the box for the protocol your proxy uses (HTTP, HTTPS, SOCKS5, etc.).
Enter the proxy IP address, Port, and authentication details if required.
Click OK, then Apply to save your settings.

macOS will now route all network traffic through the proxy, including apps, browsers, and system services.

Automation Setup (For Coders)

When you’re coding, you don’t change system settings or browser options. Instead, you configure the proxy directly inside your script, so only that program uses it. This is the most common method for developers, automation tasks, and data collection tools. Below is a simple Python example:

# Simple example for a coder (using Python)
proxies = {
    'http': 'http://user:[email protected]:8080',
    'https': 'https://user:[email protected]:8080',
}
# requests.get('http://example.com', proxies=proxies)

In this structure:

HTTP and HTTPS define which protocol uses which proxy.
The format user:password@IP:port ensures the proxy can authenticate you properly.
Only the Python script routes through this proxy; your device and other apps do not.

Always use secure, paid, and authenticated proxies for coding tasks. This keeps your data safe, reduces blocks, and prevents leaks that can happen with free or anonymous proxy sources.

Conclusion

Understanding how a Proxy Server works is a valuable skill today. A proxy server is a key tool that helps with IP masking, security, and speed. While they offer huge advantages, you must be careful about whom you trust. Always choose reputable, paid services for sensitive work.

For ongoing technical guides, configuration tutorials, and updated proxy insights, many users explore educational resources available on Soaplite to stay informed as proxy technologies continue to evolve.

By reading this content, you now understand the different proxy types and can confidently choose the best working proxy to protect your security and meet your needs. We strongly recommend you explore paid options for greater security and speed.
